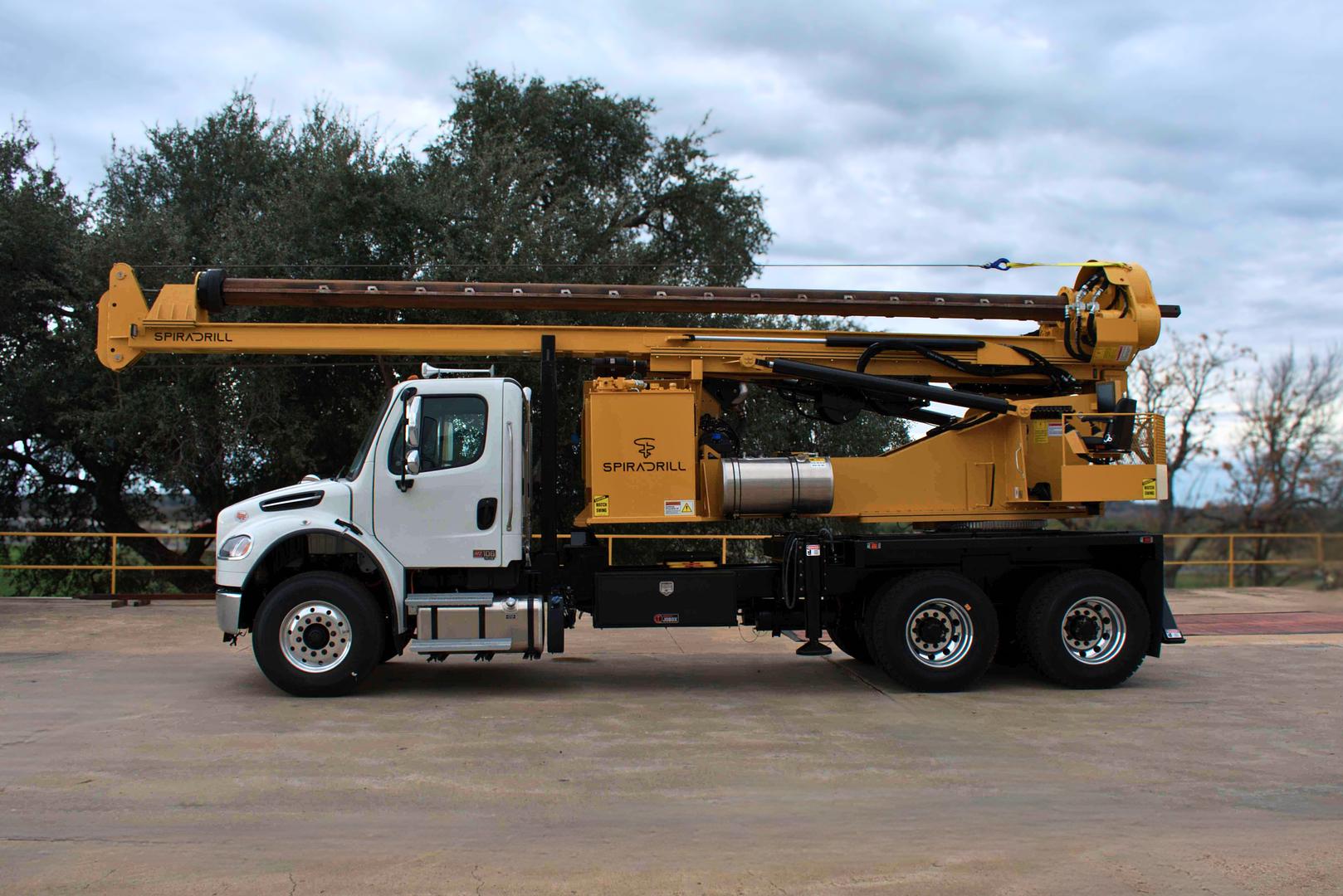

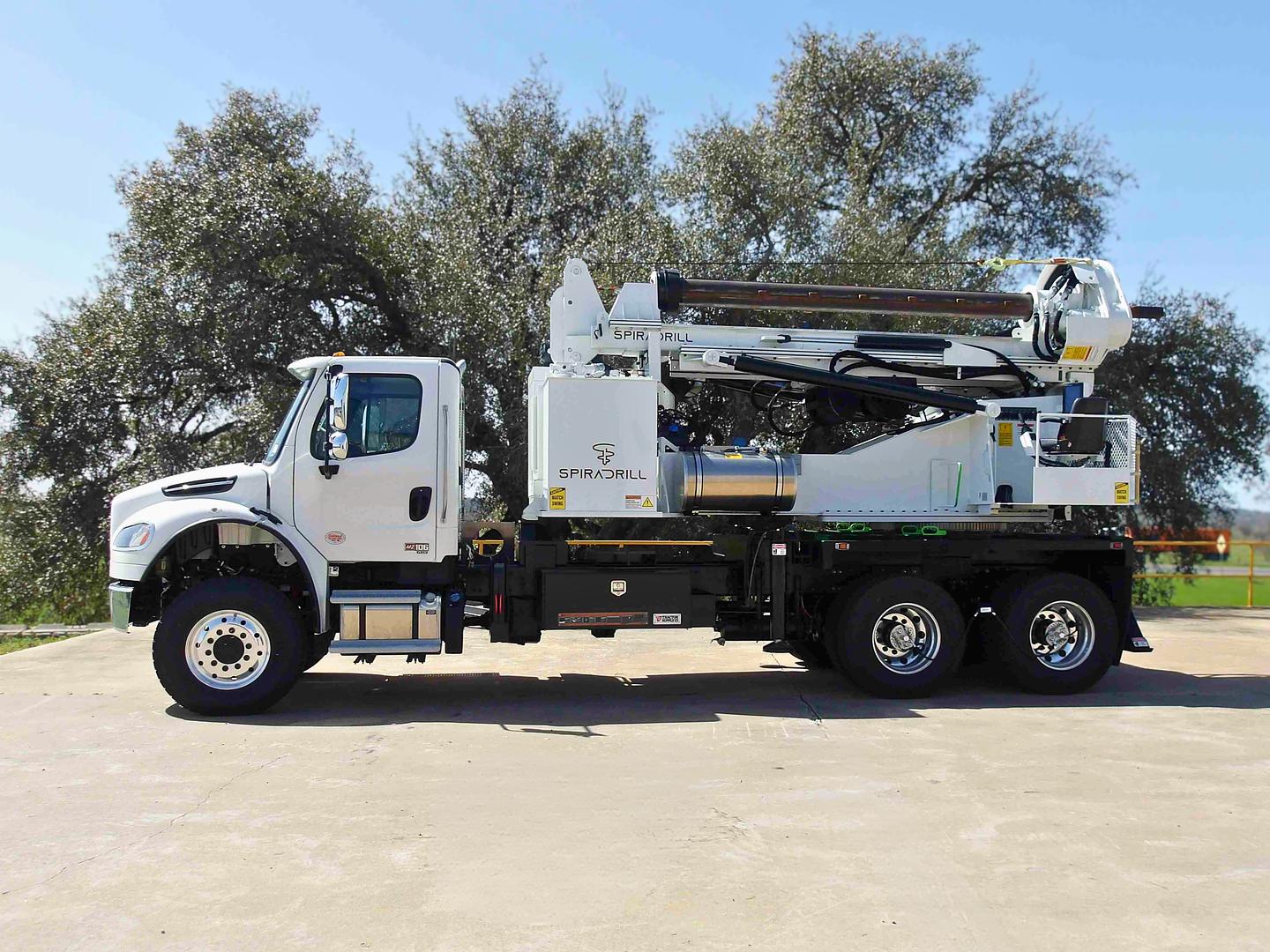

Light Hydraulic Drill XL
LHD-XL
Built to Drill Deeper
The LHD-XL takes everything crews love about the LHD and levels it up with more torque, greater depth capacity, and increased working power. With a max drill depth of 80 feet, 45,000 ft-lbs of rotary torque, and a compact footprint, the LHD-XL delivers serious performance without requiring transport permits. It is a go-to rig for utility and foundation jobs that demand more — especially in tight or overhead-restricted spaces.

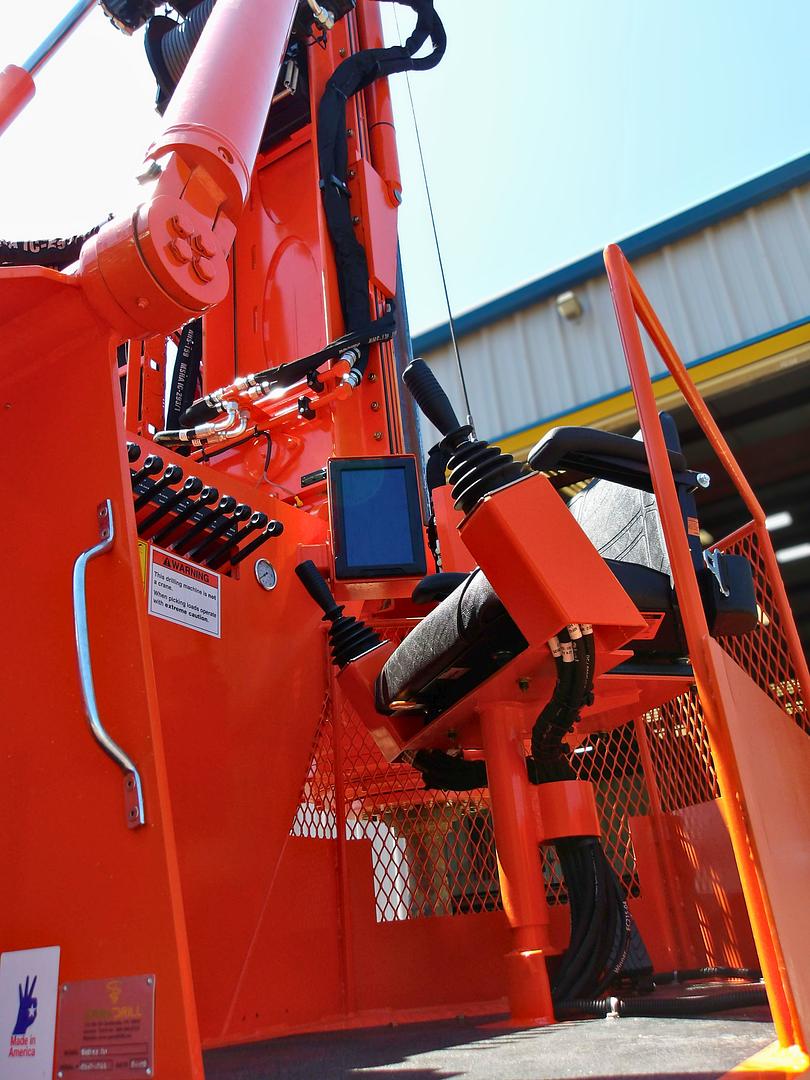

Built Different
Why Choose the LHD-XL
If you need more depth and torque without moving to a bigger footprint, the LHD-XL is your answer. It is engineered for efficiency, reliability, and jobsite agility while handling the bigger demands of utility and foundation drilling.

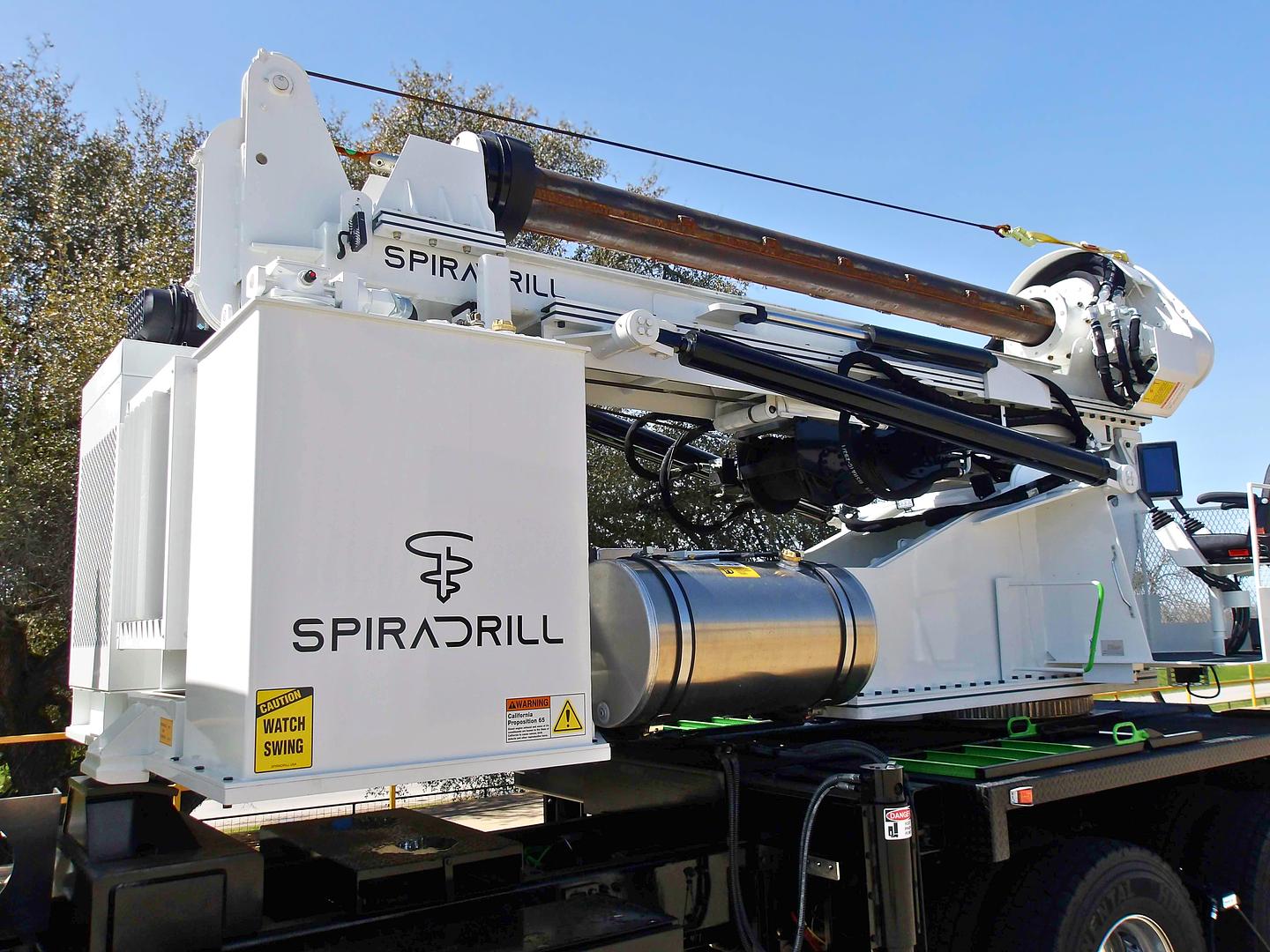

Technical Data
LHD-XL Specs
Exact specs vary by configuration. Contact us to discuss your specific project needs.
Performance
| Rotary Torque | 45,000 ft-lbs |
| Max Pile Depth | 35–80 ft |
| Max Pile Diameter | 72" |
| Max Kelly RPM (Low Range) | 22 RPM |
| Max Kelly RPM (Mid-Range) | 56 RPM |
| Spin Off RPM (Hi Range) | 140 RPM |

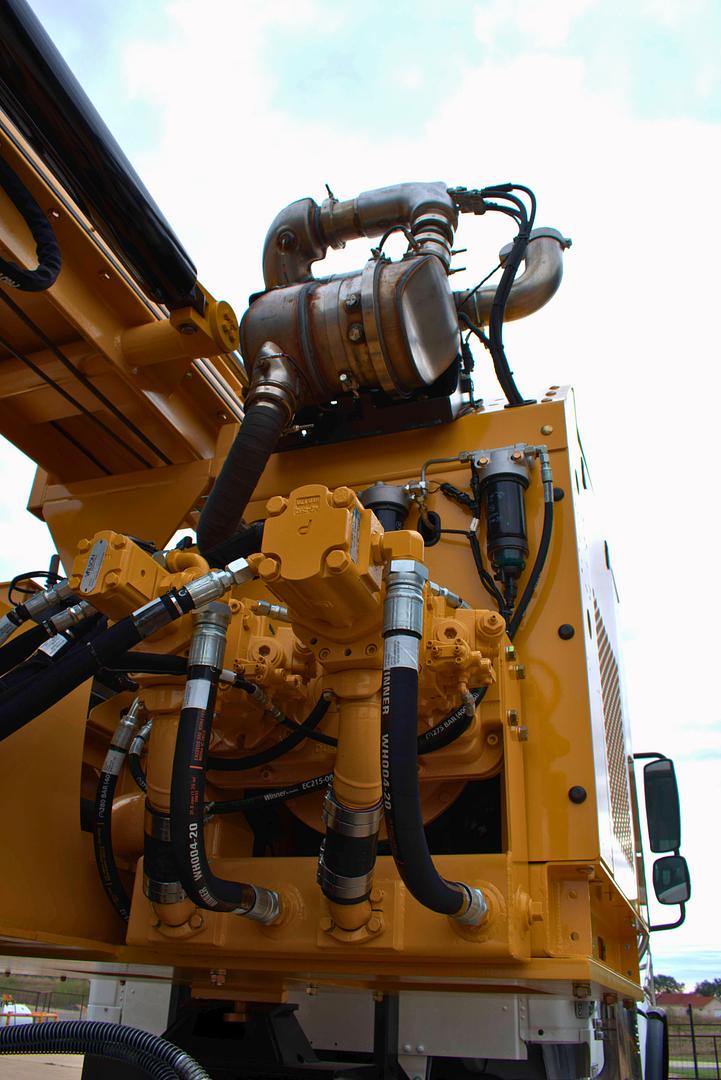

Machine
| Crowd | 24,000 ft-lbs |
| Main Winch | 12,000 ft-lbs |
| Aux Winch | 8,000 ft-lbs |
| Fuel Tank | 50 gallons |
| Engine | John Deere 4045 173 HP |

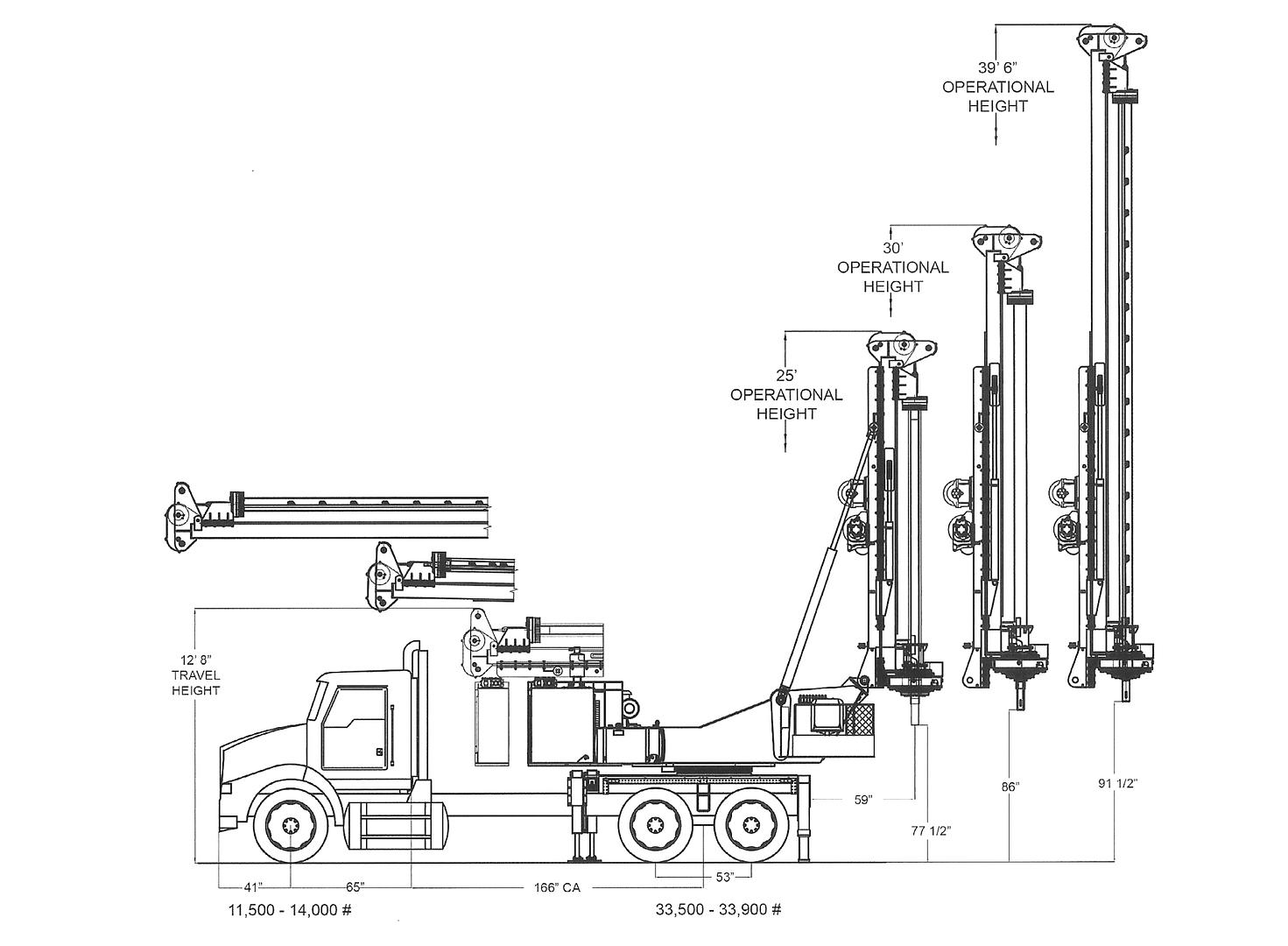

Configurations
| Drill Depth | Working Height | Kelly Bar Round | Kelly Bar Square | # of Stages |
|---|---|---|---|---|
| 35′ | 25′ | X | 3 | |
| 50′ | 25′ | X | 3 | |
| 50′ | 30′ | X | 3 | |
| 70′ | 36′ | X | 3 | |
| 80′ | 36′ | X | 4 |
Accessories and Add-ons
All LHD rigs can be outfitted with:
- Auxiliary winch
- Pro heat
- Enclosed cab
- Toolboxes and lighting
- Telemetry package for remote monitoring
- Outrigger pad storage
- Water tank, and more

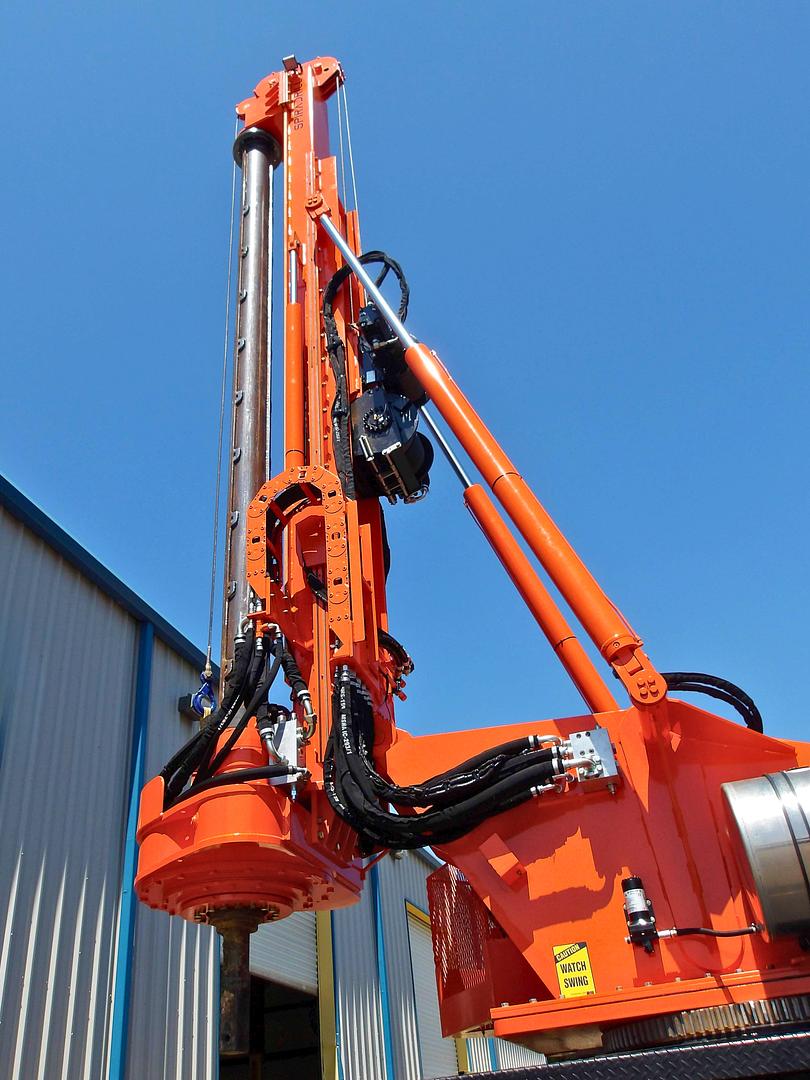

Kelly Bars: Round vs Square
Round Kelly Bars use a manual locking system and perform best in hard or rocky ground. Square Kelly Bars feature a friction lock and are ideal for softer soils, offering quicker alignment and greater flexibility. Spiradrill rigs support both, so you can match your bar to the job.
Real World Use
LHD-XL Common Applications
Foundation Drilling for Signs and Structures
Built for performance, the LHD-XL is perfect for foundation drilling jobs that require moderate depth and power — from commercial footings to street signage and light structural foundations.
Utility Pole Drilling in Restricted Spaces
The LHD-XL is ideal for utility pole installation where traditional drilling rigs cannot operate. Its compact design and extended reach make it a top choice for utility drilling near structures, fences, and overhead power lines.

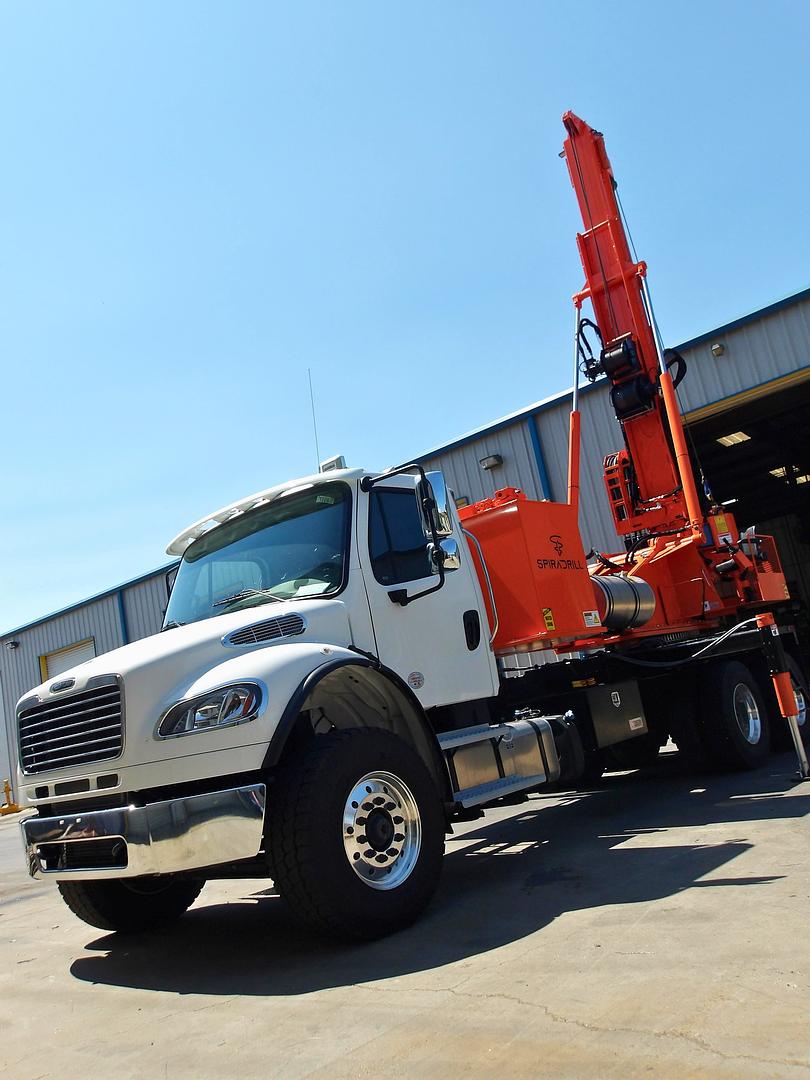

Low-Clearance and Urban Drilling Projects
With a low working height and road-legal transportability, the LHD-XL excels in urban and overhead-restricted job sites. It is the go-to choice for work under bridges, along roads, and in compact metro zones.

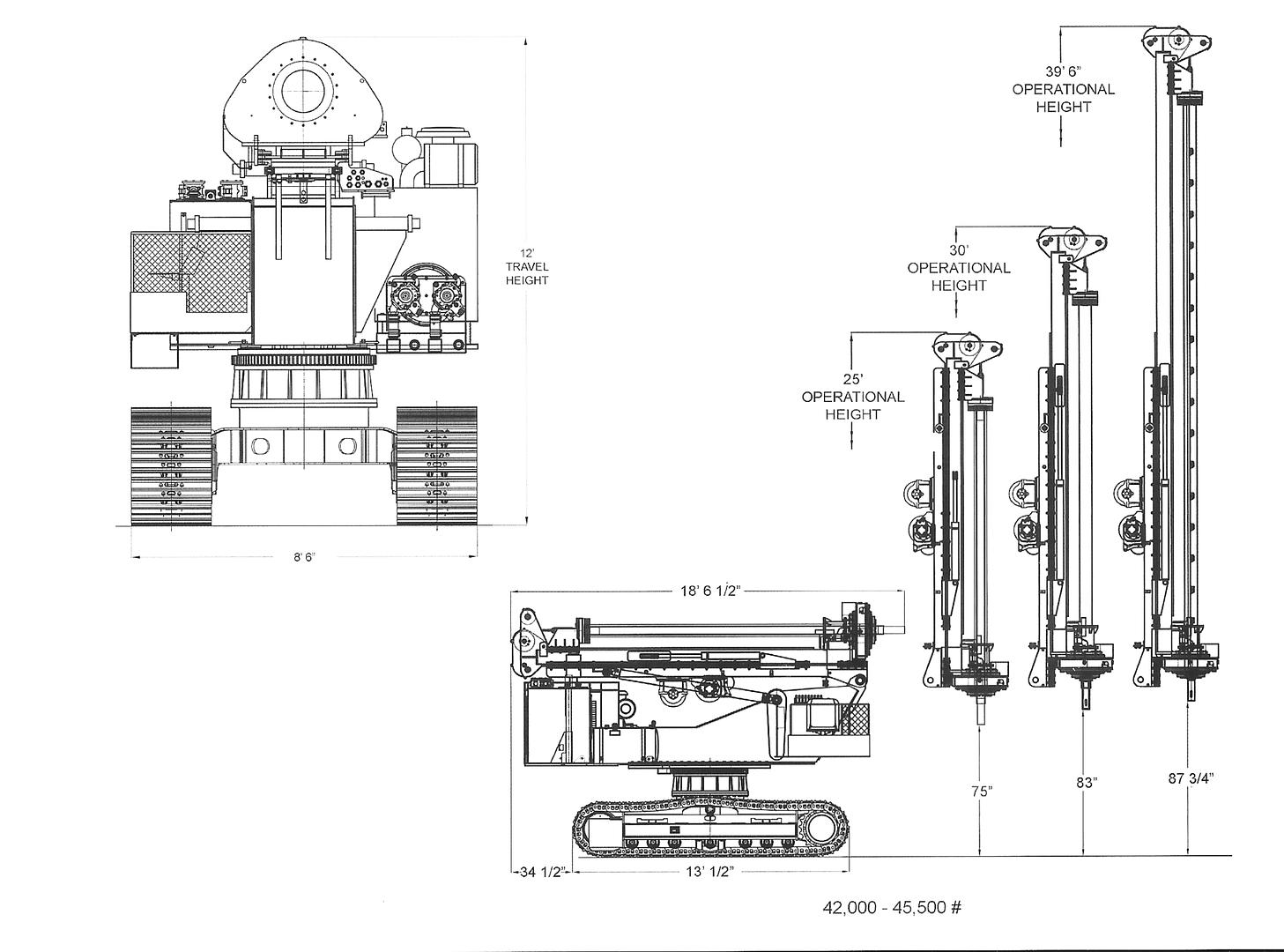

Track Mount for Difficult Terrain and Limited Access
Self-propelled design handles uneven ground, slopes, and confined sites that a truck-mounted rig cannot reach — built for the jobs that require flexibility and traction.
Get in Touch
Ready to Put the LHD-XL to Work on Your Next Job
Our team is ready to answer your questions, walk you through configurations, and help you find the right setup for your operation.
