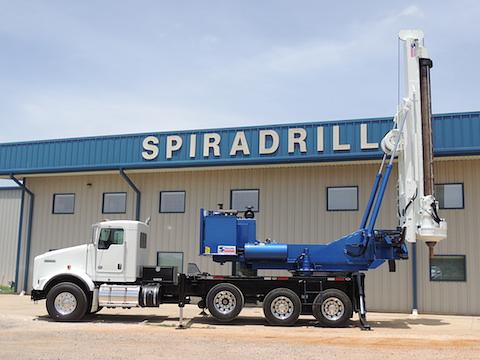

Medium Hydraulic Drill XL

MHD-XL
Maximum Torque
Ultimate Depth

The MHD-XL delivers powerful drilling up to 120 feet for high-torque, deep foundation work where performance and control are non-negotiable. With up to 90,000 ft-lbs of rotary torque and drilling depths up to 120 feet, this rig delivers unmatched power for demanding infrastructure, energy, and foundation projects.

View Specs and ConfigurationsReach Out Today
50–120′Max Pile Depth
144"Max Pile Diameter
90,000ft-lbs Rotary Torque
225 HPJohn Deere Engine

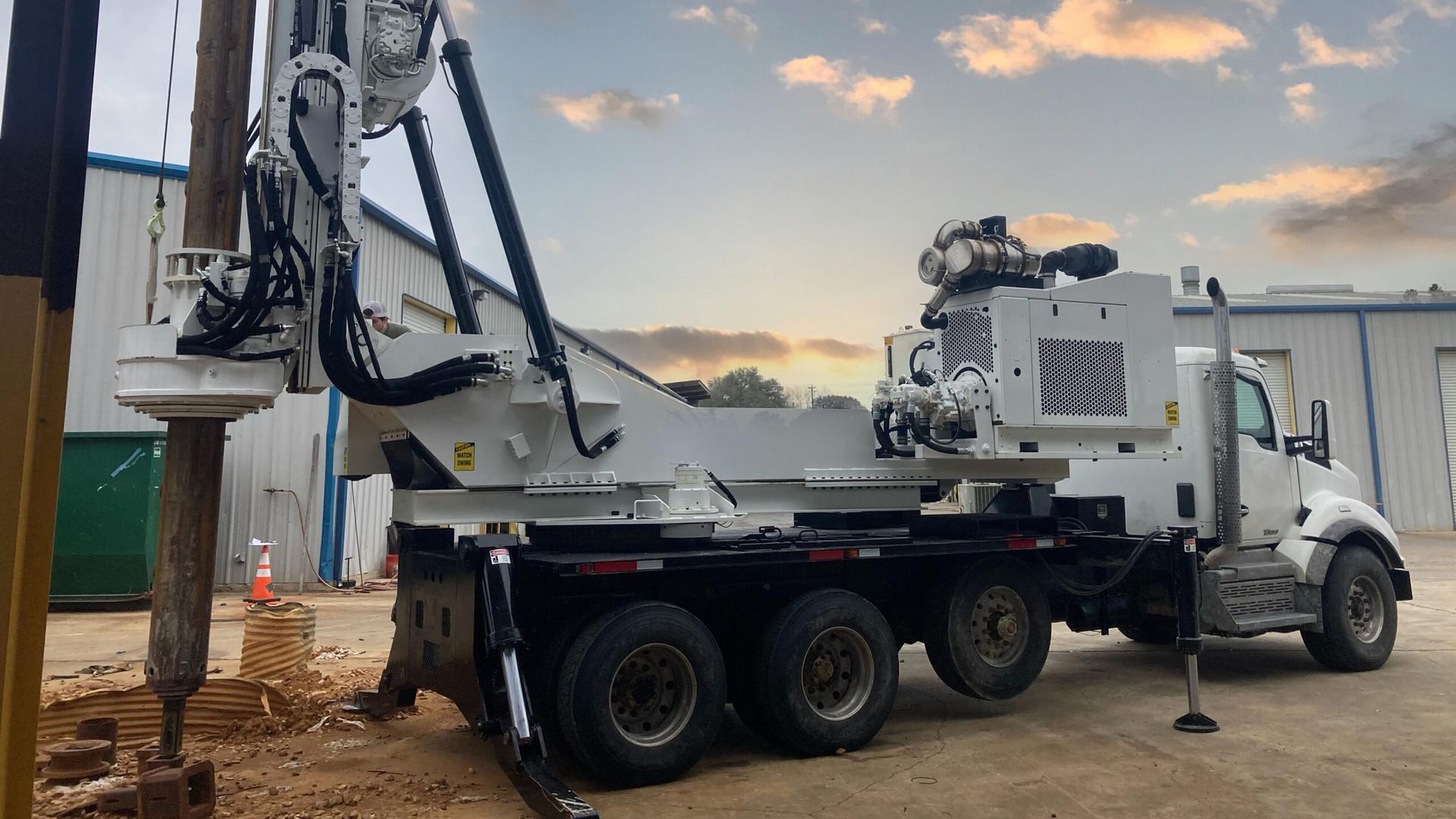

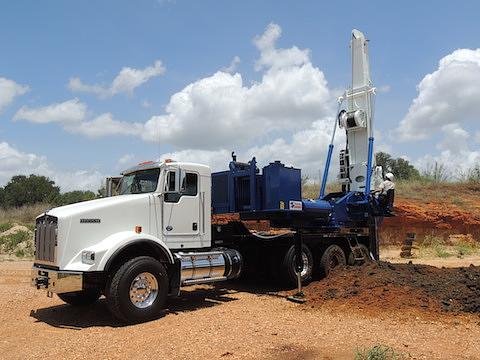

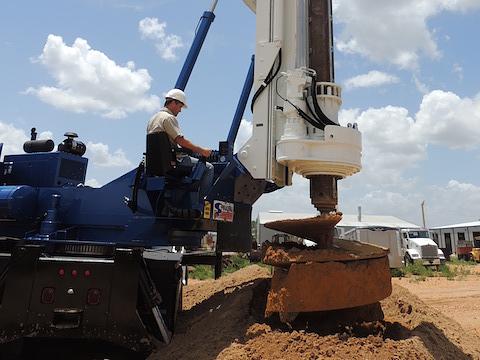

MHD-XL in the field

Built Different

Why Choose the MHD-XL

If your project demands extreme depth, high torque, and maximum reliability, the MHD-XL delivers — with industry-leading specs and Spiradrill's proven build quality.

Extreme Torque90,000 ft-lbs of rotary torque powers through rock, clay, and tough terrain with confidence.
Deeper Foundation PerformanceReach drilling depths of 50 to 120 feet for large-scale infrastructure and energy work where standard rigs fall short.
Optimized Drilling SpeedDual speed output of 9 RPM low, 22 RPM mid, and 100 RPM spin-off for efficient drilling across diverse project types.
Heavy-Lift CapabilityIncludes a 23,000 lb main winch and 12,000 lb auxiliary winch to handle heavy casings and tools with ease.
High-Capacity PerformanceWith a 225 HP John Deere engine and 62,832 lbs. of crowd force, this rig is built for serious jobs.
Built for InfrastructureOptimized for projects requiring structural support in hard ground conditions — bridges, energy, and large commercial foundations.

Technical Data

MHD-XL Specs

Exact specs vary by configuration. Contact us to discuss your specific project needs.

Performance

Rotary Torque 90,000 ft-lbs
Max Pile Depth 50–120 ft
Max Pile Diameter 144"
Max Kelly RPM (Low Range) 9 RPM
Max Kelly RPM (Mid Range) 22 RPM
Spin Off RPM (Hi Range) 100 RPM

Machine

Crowd 45,000 ft-lbs
Main Winch 23,000 lbs
Aux Winch 12,000 lbs
Fuel Tank 70 gallons
Engine John Deere 6068 225 HP

Configurations

Drill Depth Working Height Kelly Bar Round Kelly Bar Square # of Stages
50′ 30′ X 3
70′ 30′ X X 4
90′ 39′ 6″ X X 4
120′ 47′ 6″ X X 4

Accessories and Add-ons

All LHD rigs can be outfitted with:

  • Auxiliary winch
  • Pro heat
  • Enclosed cab
  • Toolboxes and lighting
  • Telemetry package for remote monitoring
  • Outrigger pad storage
  • Water tank, and more

Kelly Bars: Round vs Square

Kelly Bars power your drill's torque and depth. Round Kelly Bars use a manual locking system and perform best in hard or rocky ground. Square Kelly Bars feature a friction lock and are ideal for softer soils, offering quicker alignment and greater flexibility. Spiradrill rigs support both, so you can match your bar to the job.

Real World Use

MHD-XL Common Applications

01

Deep Foundation Drilling for Infrastructure

Perfect for bridges, overpasses, and commercial buildings, the MHD-XL is engineered for deep foundation work in tough ground conditions where maximum torque and depth are critical.

02

Conductor Casing and Rat Hole Drilling

The MHD-XL excels at drilling precision conductor casing or rat hole applications. Whether you are drilling conductor casing or supporting a bridge foundation, this rig is ready.

03

Heavy-Duty Utility and Civil Projects

Whether it is large diameter utility poles or structural support for major civil infrastructure, the MHD-XL provides the depth, torque, and road-ready mobility needed on high-impact projects.

04

Energy and Industrial Foundation Work

The MHD-XL is the rig of choice for high-torque drilling in utility, infrastructure, and heavy construction applications — including conductor casing or supporting a bridge foundation.

Get in Touch

Ready to Put the MHD-XL to Work on Your Next Job

Our team is ready to answer your questions, walk you through configurations, and help you find the right setup for your operation.
